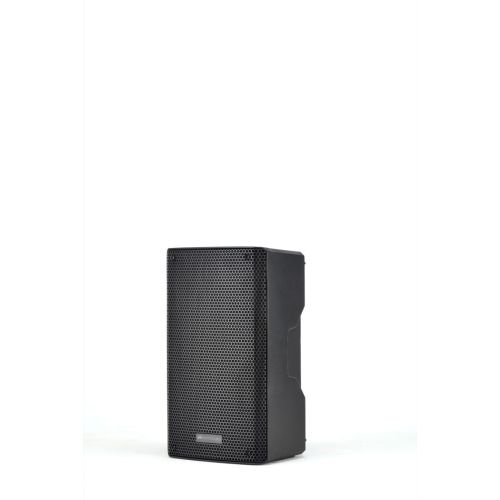

dB Technologies KL 10 Aktivbox

Technische Daten

Speaker Type
2-Way Active Speaker

Akustische Daten

Frequency Response [-10dB]
55 - 18.000 Hz
Max SPL
125 dB
HF
1" CD, 1"v.c
LF
10", 2" v.c.
Dispersion
90°x60°
Crossover Frequency
2000 Hz (24 dB/oct.)

Verstärker

Amp Technology
Class D(LF)+Class AB (HF)
Power Peak (LF+HF)
400 W

Prozessor

Controls
1xVolume, 1xslide switch mic/line
Indicators
power on/signal/limiter LEDs
Controller
DSP 20/56 bit
AD/DA Converter
24 bit/ 48 Hz
Systems Presets
Playback, Flat, Bass Boost, Wedge
Limiter
Peak, RMS, Thermal
Advanced DSP Functions
Linear Phase FIR Filters

Eingang

Signal Input
1x Combo(XLR/Jack)
Mic/Line
1xXLR/TRS

Bluetooth Input
1xBluetooth receiver
SIGNAL Out
1xXLR Male (LINK/MIX)

Mechanik

Housing
Polypropylene
Handles
3 (2 on side 1 on top)
Angles Up
Monitor Use 40°
Pole Mount
36 mm, double positioning
Width
310 mm (12.2 in)
Height
521 mm (20.51 in)
Depth
292 mm (11.51 in)
Weight
11.7 kg (25.79 lbs)
